Vibration Motor 11.6×4.6×4.8mm

14 pc(s)
RBT-01483

$4.90

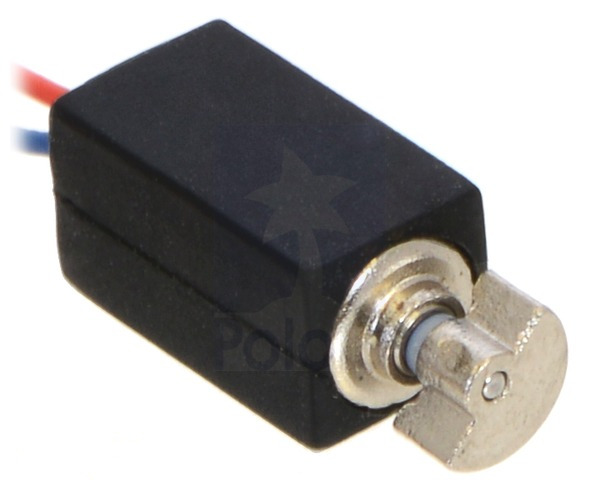

This tiny DC motor produces vibrations by spinning an eccentric shaft at over 10,000 RPM when powered at 3 V. Motors like this are commonly found in cell phones and other devices that use vibration for tactile feedback, and its small size (11.6 × 4.6 × 4.8 mm) and light weight (0.8 g) make it...
+

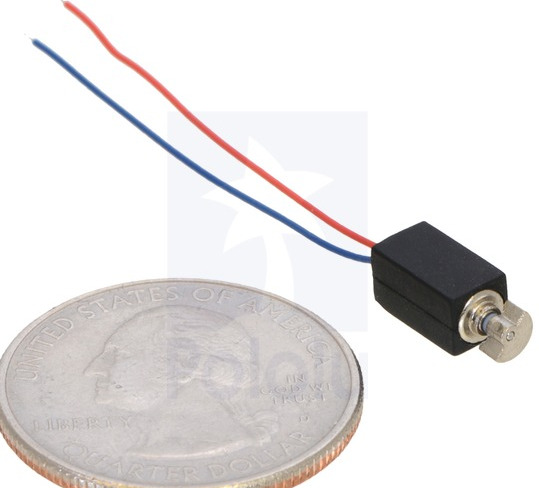

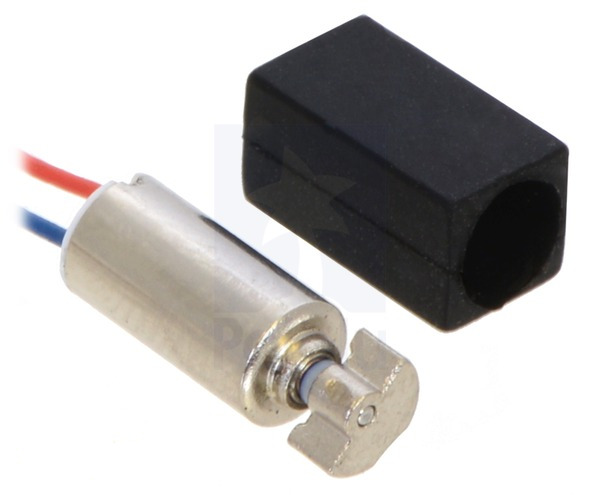

This tiny DC motor produces vibrations by spinning an eccentric shaft at over 10,000 RPM when powered at 3 V. Motors like this are commonly found in cell phones and other devices that use vibration for tactile feedback, and its small size (11.6 × 4.6 × 4.8 mm) and light weight (0.8 g) make it easy to integrate into systems with tight space constraints. The motor has 1.5″ leads and is encased in a removable rubber sleeve that gives it flat surfaces for mounting and prevents it from chattering against whatever it is mounted to. It is intended for operation around 3 V (2.4 V to 3.5 V recommended), and polarity is not important (the motor can run CW or CCW). See the datasheet under the resources tab for more information on this motor.

Spedifications:

  • Free-run speed @ 3V: 12,500rpm
  • Free-run current @ 3V: 65mA (Max. 85mA)
  • Stall current @ 3V: 100mA
  • Recommeded operating voltage: 2.4 to 3.5V

Dimension:

  • Size: 11.6 x 4.6 x 4.8mm
  • Weight: 0.8g
