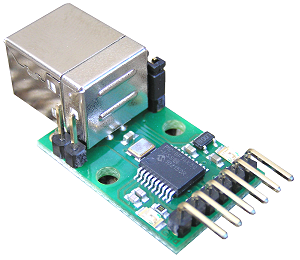

USB-ISS - Enhanced USB-I2C Module

3 pc(s)
TOL-01402

$38.90

The USB-ISS Multifunction USB Communications Module provides a complete interface between your PC and the I2C bus, SPI bus, a Serial port and general purpose Analogue Input or Digital I/O. The module is powered from the USB. Operating voltage is selectable between 3.3V and 5V and can...
+

The USB-ISS Multifunction USB Communications Module provides a complete interface between your PC and the I2C bus, SPI bus, a Serial port and general purpose Analogue Input or Digital I/O.

The module is powered from the USB. Operating voltage is selectable between 3.3V and 5V and can supply up to 80mA at 5V for external circuitry from a standard 100mA USB port.

Features:

  • USB Powered
  • Support I2C at 20,50,100,400 &1000khz
  • I2C + I/O
  • SPI Mode: 24khz to 3Mhz
  • Serial Mode: 300baud to 3Mbaud
  • 5v and 3.3V operation
  • Up to 80mA for external circuit
  • Bootloader for firmware updates
