Negatron DC-DC Converter

4 pc(s)
PWD-01180

$36.50

Negatron is a buck-boost converter that takes a positive voltage and turns it into a negative voltage that you can use with amplifier circuits and more. The output is adjustable from -1.3V to -12V. Negatron is also able to step up/step down the magnitude of the voltage. For example, you...
+

Negatron is a buck-boost converter that takes a positive voltage and turns it into a negative voltage that you can use with amplifier circuits and more. The output is adjustable from -1.3V to -12V. Negatron is also able to step up/step down the magnitude of the voltage. For example, you can feed Negatron +9V and it can give you a -5V or a -12V rail.

Negatron is the perfect choice for engineers frustrated with trying to create a negative voltage source in their low power circuit.

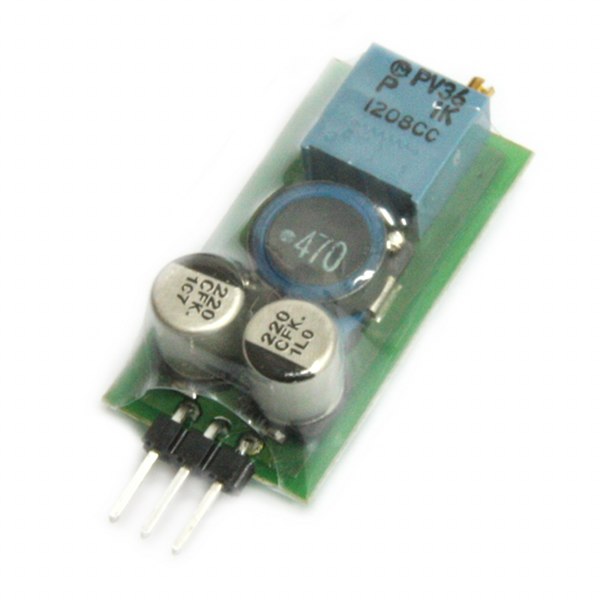

Negatron will operate from a 4V to 14V input and the output voltage is set with the small screw potentiometer on the top.

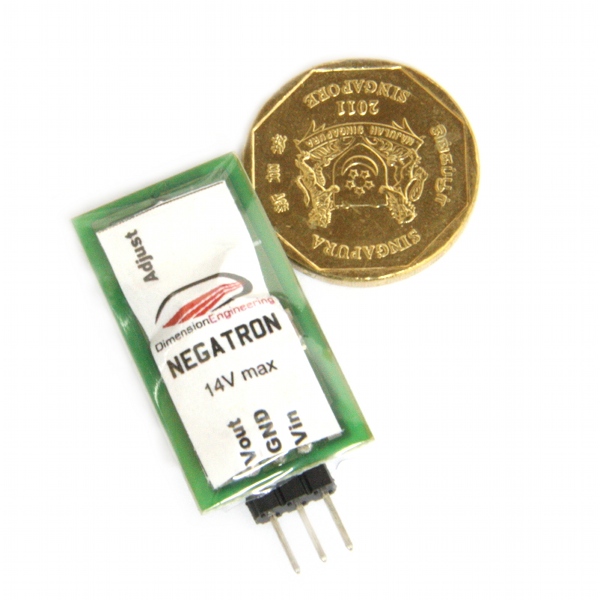

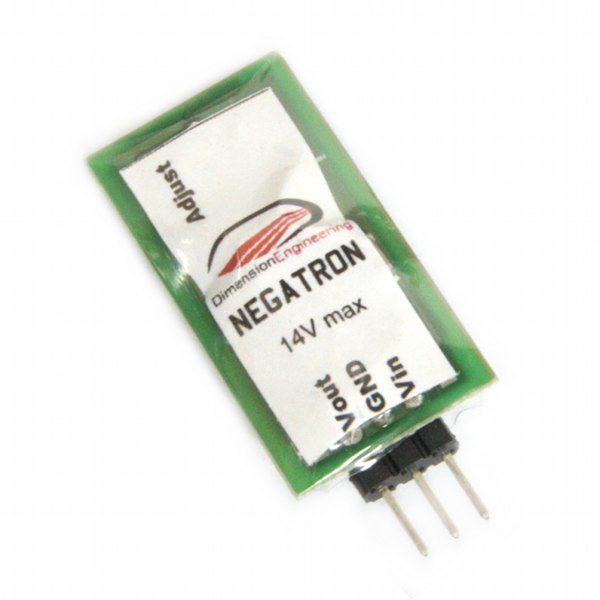

Negatron is pin-compatible with the common 78XX series of linear voltage regulators, so it will work with breadboards and other popular prototyping methods.

Negatron is very different from any other DC-DC converter on the market so please read the entire datasheet thoroughly before buying or using one.

Specifications:

  • -1.3V to -12V output voltage range
  • 4V to 14V input voltage range
  • 0.5A max output current @ -5V when powered from +9V
  • 0.25A max output current @ -12V when powered from +12V (please see datasheet for current ratings at other input/output voltages)
  • ~100mV typical ripple
  • External components not normally needed
