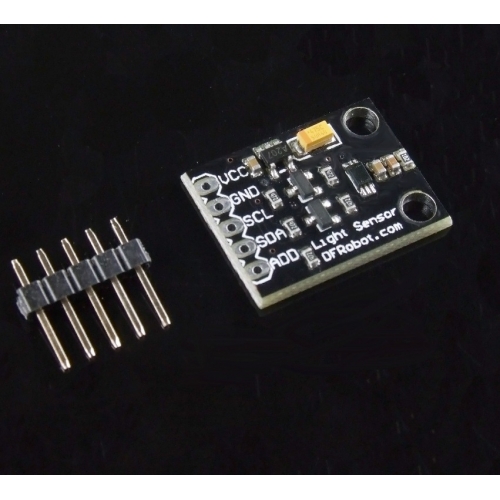

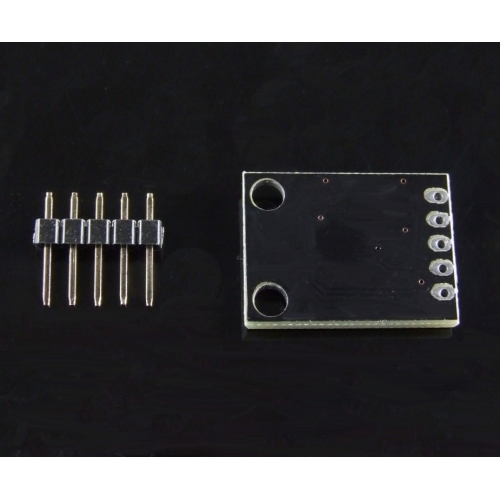

BH1750 Ambient Light Sensor Breakout

6 pc(s)
SEN-01045

$23.70

BH1750FVI is an digital Ambient Light Sensor IC for I2C bus interface. This IC is the most suitable to obtain the ambient light data for adjusting LCD and Keypad backlight power of Mobile phone. It is possible to detect wide range at High resolution. Features I2C bus Interface...
+

BH1750FVI is an digital Ambient Light Sensor IC for I2C bus interface. This IC is the most suitable to obtain the ambient light data for adjusting LCD and Keypad backlight power of Mobile phone. It is possible to detect wide range at High resolution.

Features

  • I2C bus Interface
  • Spectral responsibility is approximately human eye response
  • Illuminance to Digital Converter
  • Wide range and High resolution. ( 1 - 65535 lx )
  • Low Current by power down function
  • 50Hz / 60Hz Light noise reject-function
  • Light source dependency is little. ( ex. Incandescent Lamp. Fluorescent Lamp. Halogen Lamp. White LED. Sun Light)
  • It is possible to select 2 type of I2C slave-address.
  • Adjustable measurement result for influence of optical window
  • Small measurement variation (+/- 20%)
  • The influence of infrared is very small.
  • Operating Voltage: 3.3V-5V

Dimensions: 0.85*0.63*0.13"(21*16*3.3mm)
